Azbil SDC15 Series Digital Controllers
Azbil SDC15 Series Digital Controllers
Azbil SDC15 series digital controllers represent the high-performance industrial control solutions manufactured by Azbil Corporation, a renowned leader in automation technology. With a diverse product lineup including models like C15SRORA0000, C15MTVOTA0300, C15MTVOTA0100, C15MTVORA0300, C15MTVORA0100, C15MTROTA0100, C15TROTA0000 and C15MTCOTA0300, this series is engineered to meet the rigorous demands of various industrial temperature and process control applications.
Core Technical Specifications
All models in the SDC15 series feature a universal AC power supply of 100~240V 50/60Hz with a maximum power consumption of just 12VA, ensuring wide compatibility with global power systems and energy efficiency. The controllers support multiple output types such as relay output and voltage pulse output, with clear terminal markings for easy wiring—including dedicated terminals for PV (Process Value), COMM (Communication), DA, DB, SG and EV (Event Output) for intuitive operation and integration.
Manufacturing & Certification

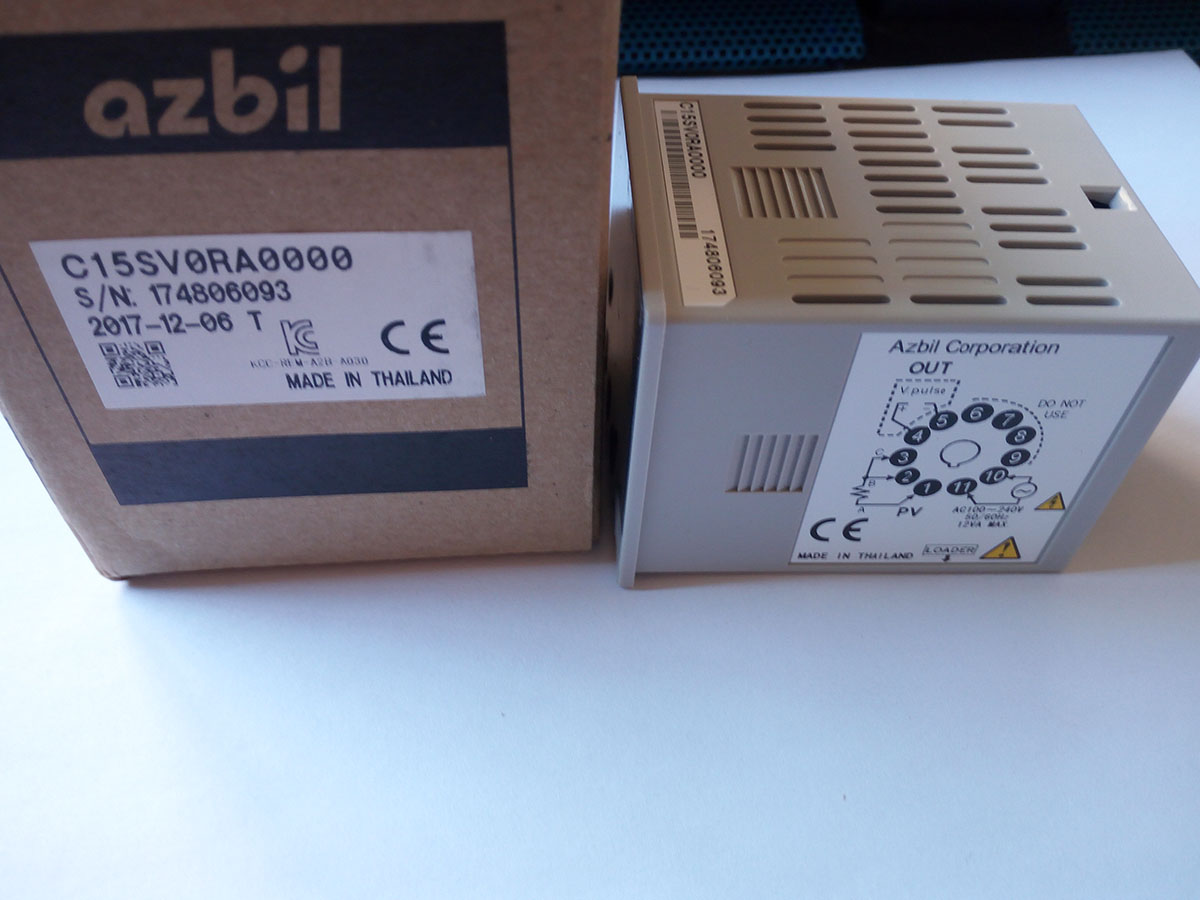

The majority of the SDC15 series products are Made in Thailand at Azbil Production (Thailand) Co., Ltd., a key manufacturing base of Azbil Corporation established in 2013, which underscores the brand's global production layout and commitment to localized supply in the Asian market. Partial models like C15MTCOTA0300 are produced in China, with the entire series designed by Azbil Japan, guaranteeing consistent international quality standards.
All products are certified with CE and KC marks, complying with European and Korean industrial safety and electromagnetic compatibility regulations. Each unit is assigned a unique serial number (e.g., 170804126, 161626508) and production date, enabling full traceability of product quality and manufacturing information. Production dates of the listed models range from 2015 to 2017, reflecting the series' long-term market availability and mature production technology.
Superior Performance Features
As a compact 48×48mm digital regulator, the SDC15 series boasts industry-leading design and performance:
- Advanced Control Algorithms: Equipped with Rational Loop PID (Derivative First PID) and Just-FiTTER technology, it achieves fast setpoint recovery and stable control, effectively suppressing overshoot and resisting external interference for precise temperature and process regulation.
- Ultra-Compact Design: With an ultra-short body length of 60mm and an ultra-thin 2mm panel, it fits perfectly in narrow instrument panels, saving valuable installation space. The panel of C15M models reaches IP66 protection grade, featuring dust and water splash resistance for flexible installation in harsh industrial environments.
- Intuitive Operation: Adopts high-visibility dual-color LED display for clear real-time monitoring of SP (Set Point) and PV (Process Value), with LED indicators for RUN/READY, event output and MV output status. The one-touch MODE key enables quick switching between auto/manual modes, Run/Ready status and output lock release for simplified operation.
- Versatile Input & Output: Supports multiple input types including thermocouple, resistance temperature detector (RTD), current and voltage signals, with up to 2 control outputs for independent heating and cooling regulation, meeting diverse application needs.
- PC Connectivity & Remote Diagnostics: The series realizes PC software compatibility in a compact 48×48mm form factor, supporting parameter setting and trend monitoring via a dedicated cable. It also enables remote diagnostics, reducing on-site debugging workload and ensuring accurate preset operation of each unit.
- Event Configuration Function: Built-in 5 events that can be assigned to 3 event output interfaces, reducing wiring quantity and labor costs when connecting with PLC and other equipment, achieving a more efficient connection mode.
Application Scope
Azbil SDC15 series digital controllers are widely used in various industrial fields such as chemical, food and beverage, pharmaceutical, machinery manufacturing and HVAC systems. They are ideal for temperature control of reactors, ovens, heating furnaces and other equipment, as well as process parameter regulation in production lines, providing reliable and precise control for industrial automation production.
Backed by Azbil Corporation's decades of expertise in automation technology and a global production and service network, the SDC15 series delivers durable performance, easy maintenance and excellent compatibility, making it a trusted choice for industrial customers seeking high-quality control solutions.
