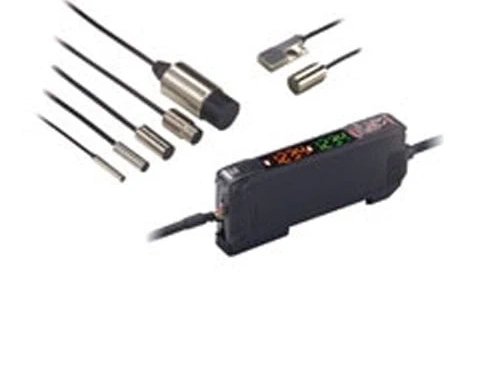

Product Overview: E2C Series Proximity Sensors (E2C-JC4EH, E2C-EDR6-F, E2C-EDA11, E2C-ED01)Product Overview: E2C Series Proximity Sensors (E2C-JC4EH, E2C-EDR6-F, E2C-EDA11, E2C-ED01)

The E2C series, including models E2C-JC4EH, E2C-EDR6-F, E2C-EDA11, and E2C-ED01, are high-precision separate-amplifier inductive proximity sensors designed for industrial automation applications. These sensors feature a compact, lightweight sensor head paired with a remote amplifier unit, enabling flexible installation in space-constrained environments and consistent performance across harsh conditions.

Key Features

• Modular Design: The separate amplifier and sensor head support diverse mounting configurations; the E2C-JC4EH amplifier offers DIN-rail mounting and a 2m pre-wired cable for easy integration.
• High Precision & Reliability: Inductive sensing technology delivers accurate detection of metallic objects, with adjustable sensitivity for fine-tuning. Operating voltage ranges from 10 to 30 VDC, ensuring compatibility with standard industrial power systems.
• Versatile Specifications:
  • E2C-ED01: Ultra-compact sensor head (5.4mm diameter) for detecting small metal components.
  • E2C-EDR6-F: Precision sensor head optimized for short-range detection in tight spaces.
  • E2C-EDA11: High-performance amplifier unit with NPN/PNP output options and differential operation for enhanced noise immunity.
  • E2C-JC4EH: Amplifier with a potentiometer for manual sensitivity adjustment, supporting NO/NC selectable outputs.
• Durable Construction: IP67-rated sensor heads withstand dust, moisture, and industrial contaminants, operating reliably in temperatures from -25°C to +70°C.

Common Applications
